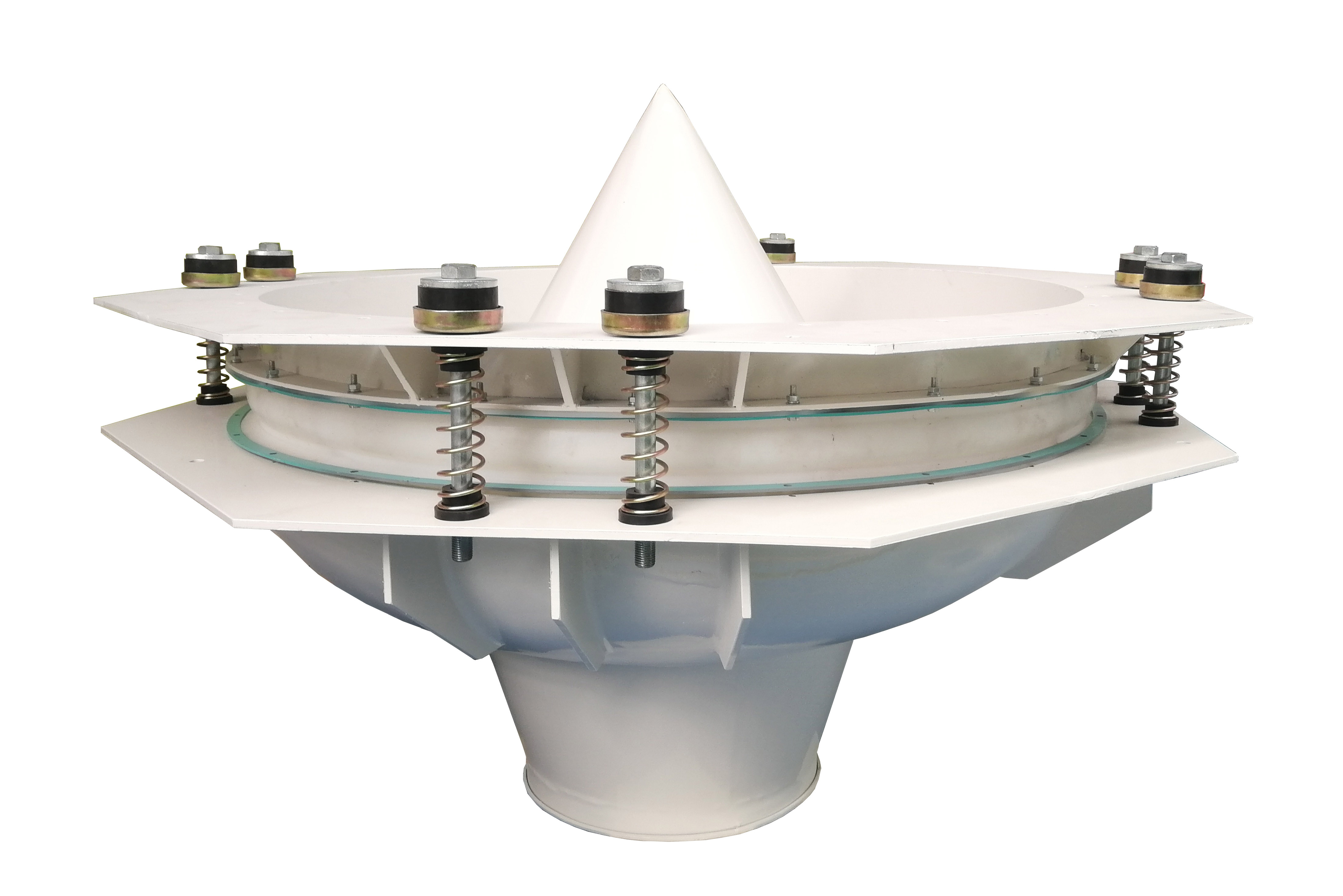

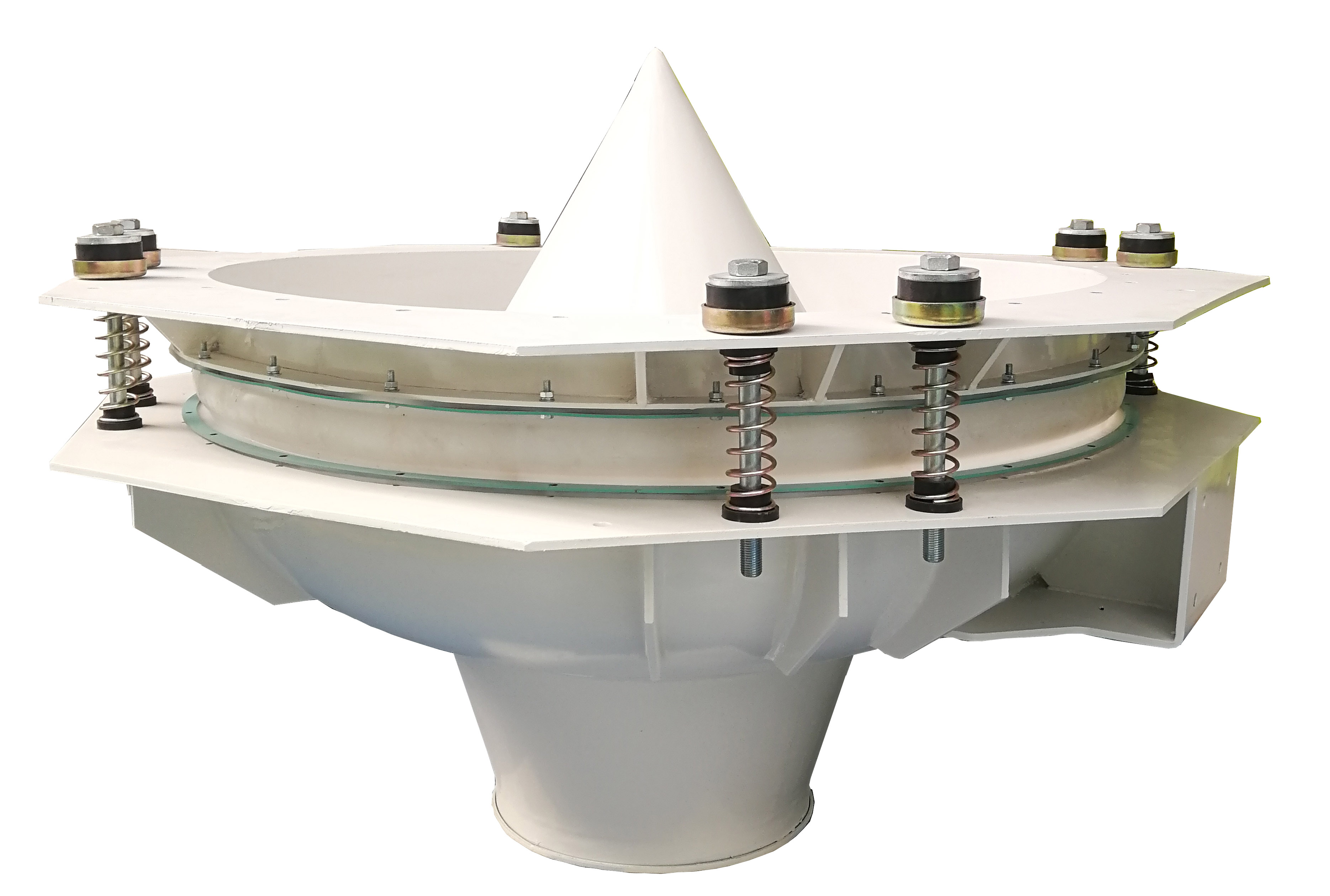

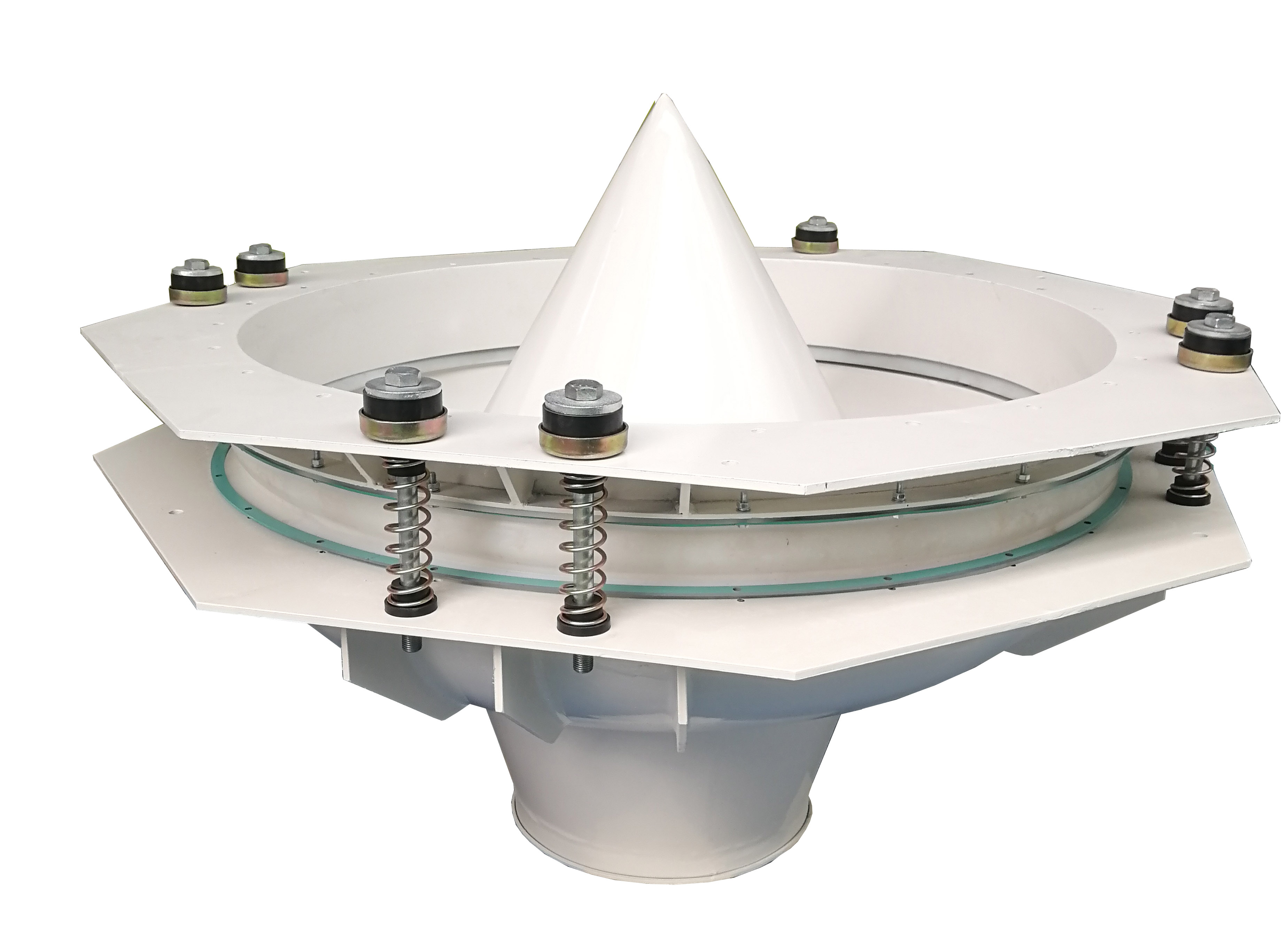

TDXZ series of vibration bin discharger
 Time:2016/7/28 5:15:21    Comefrom:

TDXZ series of vibration bin discharger is widely used to discharge of raw material or particle material in food, fodder, oil and chemical industries. By using vibration motor as the force and driving the hopper with a high frequency vibration, the machine promotes the material to flow from the outlet slowly and evenly, therefore effectively preventing materials from an arch  in the warehouse.


                Item

Specification

Inlet size/mm

Outlet size/mm

Power/kw

TDXZ60×20

600

200

0.25

TDXZ80×20

800

200

0.25

TDXZ100×30

1000

300

0.37

TDXZ130×50

1300

500

0.37

TDXZ160×50

1600

500

2×0.37

TDXZ200×50

2000

500

2×0.55

TDXZ250×50

2500

500

2×0.75
