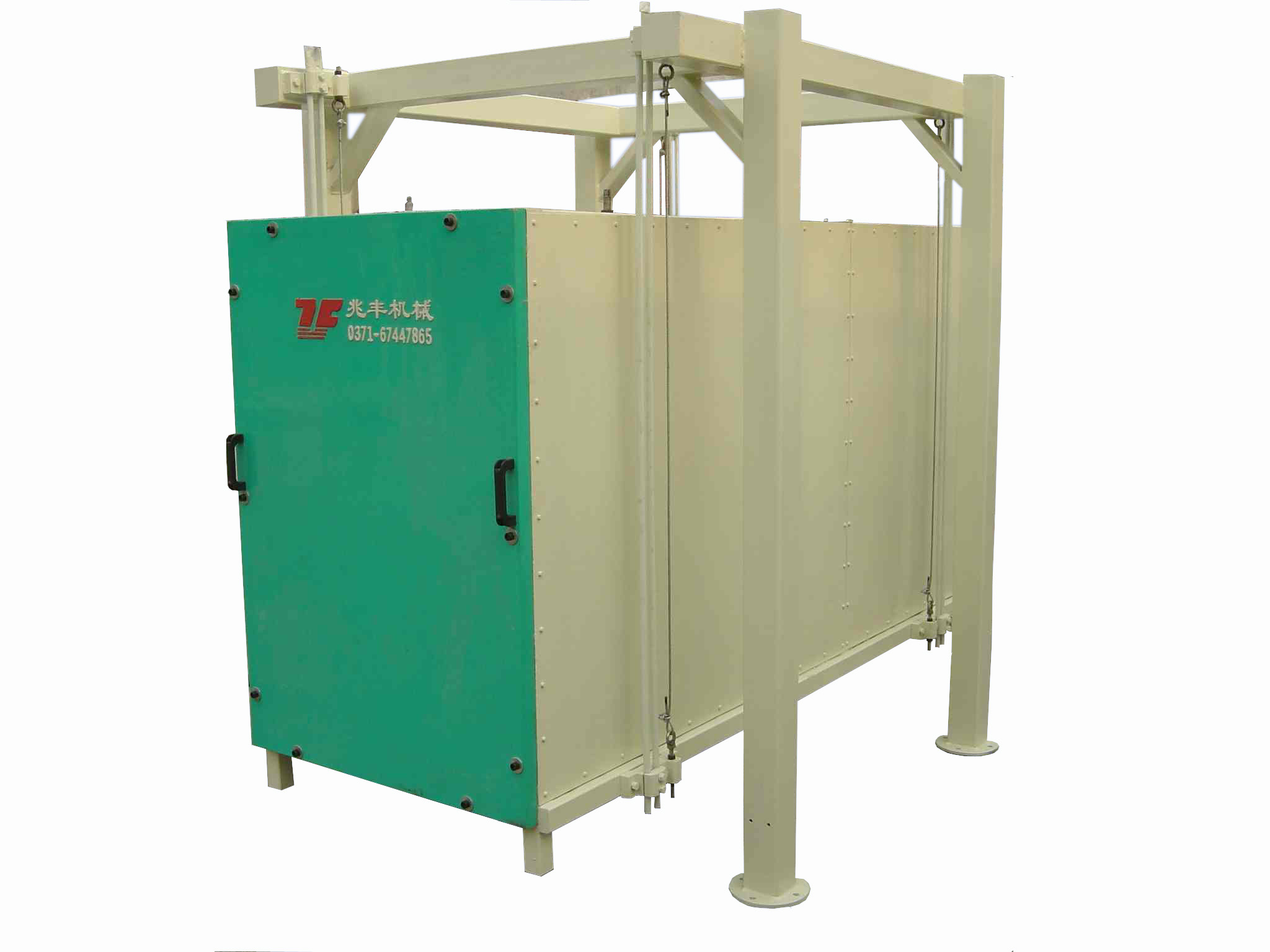

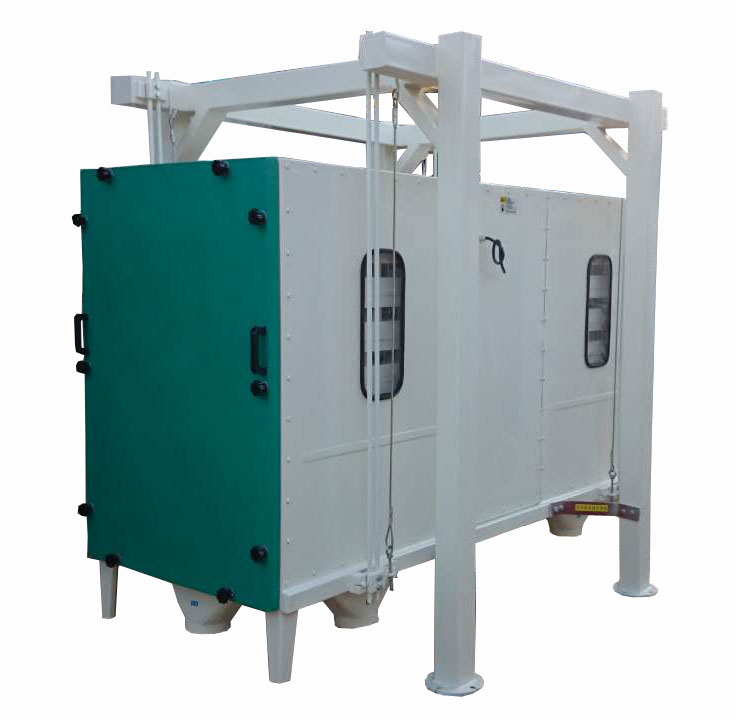

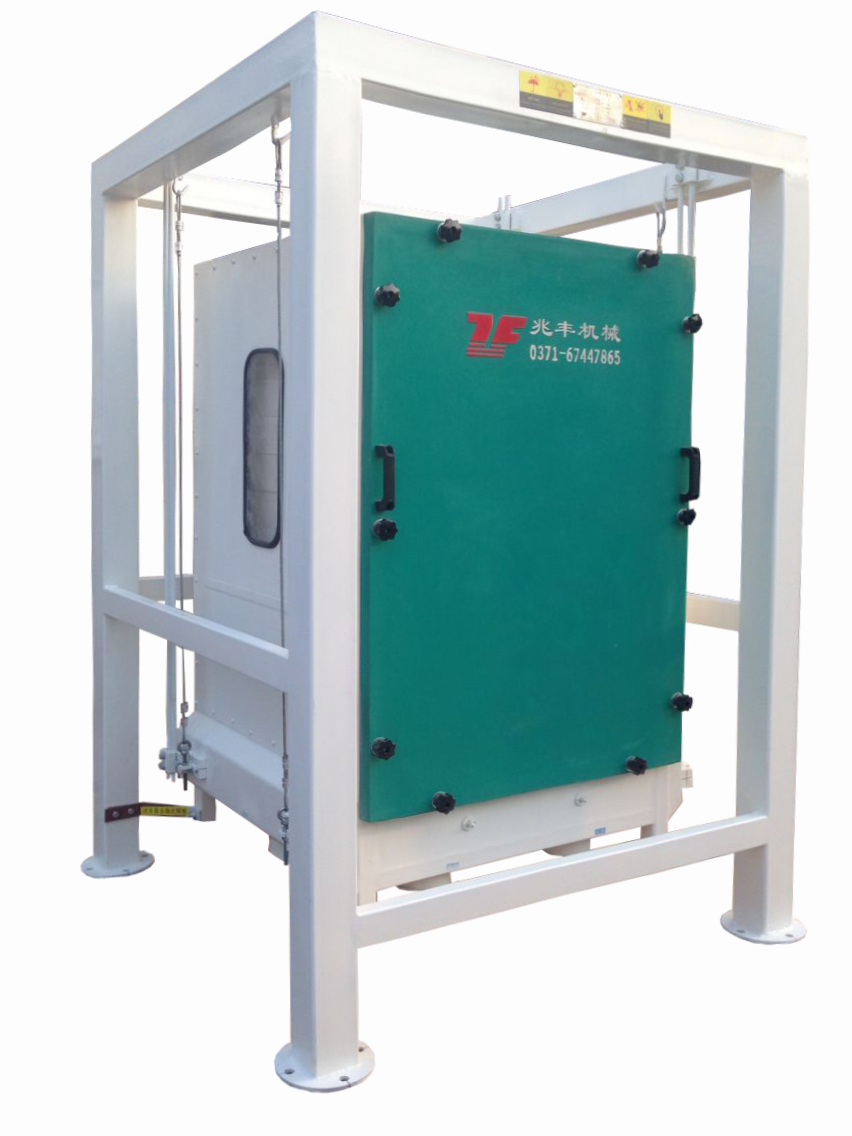

FSFG series of closed type pellet grading sifter
 Time:2016/7/27 16:40:13    Comefrom:

       FSFG series of closed type pellet grading sifter, independently developed by our company, is a more efficient plane-rotary sifter with the following main characteristics: sieve box located inside sieve body, compact structure, perfect sealing and no leakage. An enlarged sieve box with a large flow rate is installed in the sieve case. Its screening area is 30% larger than those of the conventional sifter. The sieve box is detachable in structure, reasonable stress as well as a  longer service life.


               Item


Specification

Capacity/t/h

Power

/kw

Rotary diameter

/mm

Weight  /kg

Overall dimension

(L×W×H)/mm

FSFG1×83

3—4

1.5

35—45

680

1470×1460×2130

FSFG2×83

6—10

1.5

45—55

1020

2550×1640×2100

FSFG1×100

4—6

1.5

35—45

835

1660×1630×2130

FSFG2×100

10—15

2.2

45—55

1350

2880×1810×2100
