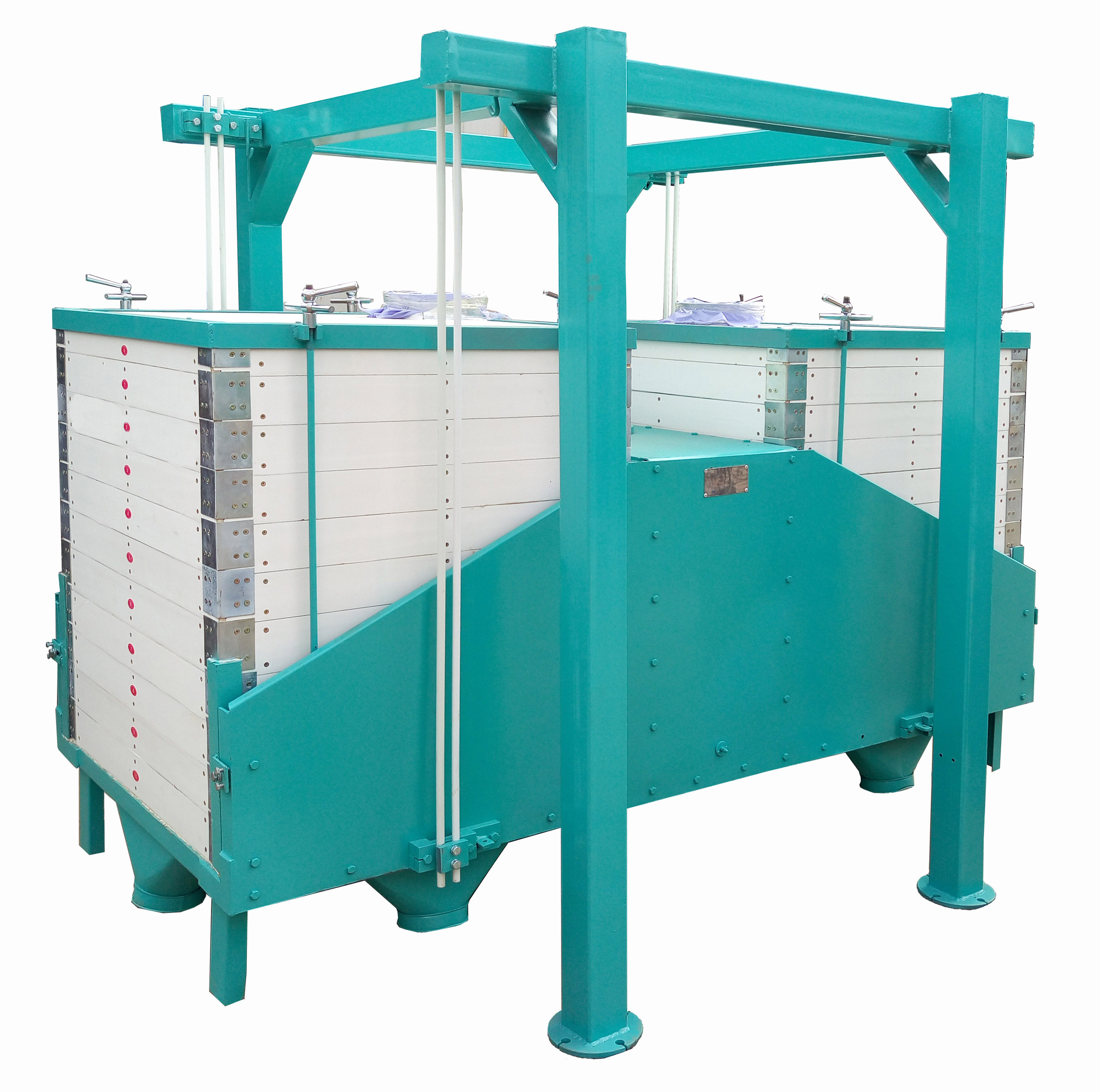

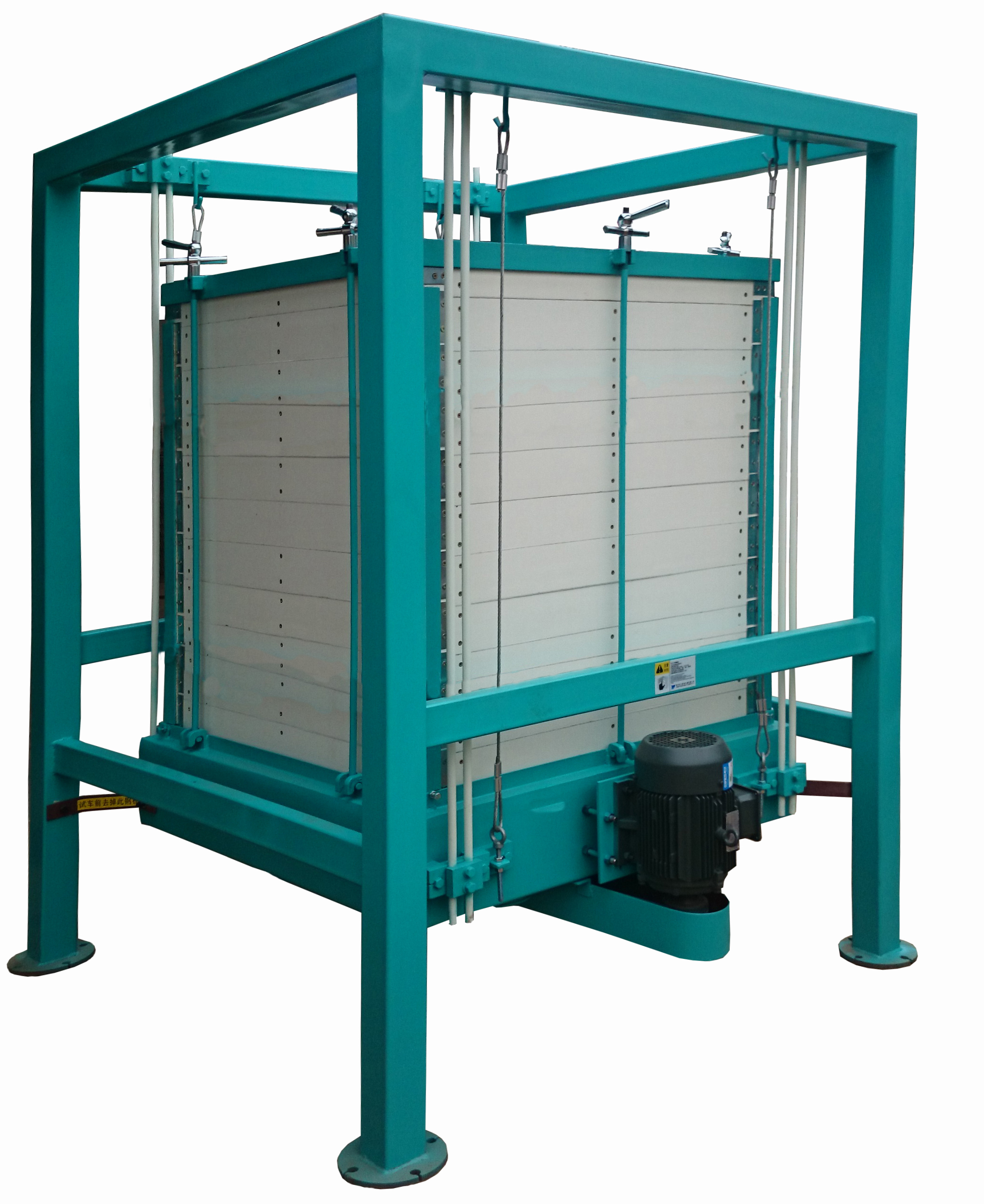

FSFJ series of pellet grading sifter
 Time:2016/7/27 16:36:32    Comefrom:

        FSFJ series of conventional type pellet grading sifter is designed to grade and sift according to size and density of material by means of plane-rotary movements.  Therefore, it can be used widely for grading and impurity removal in different fields like flour milling, fodder, pharmaceutical, chemical, starch and other industries.

                Item

Specification

Capacity

/t/h

Power

/kw

Rotary diameter

/mm

Weight

/kg

Overall dimension

(L×W×H)/mm

FSFJ1×83

2—3

1.1

40

470

1420×1380×1890

FSFJ2×83

5—7

1.5

50—55

830

2180×1660×2120

FSFJ1×100

3—4

1.5

40

570

1580×1535×2010

FSFJ2×100

9—10

2.2

50—55

1050

2510×1800×2120
